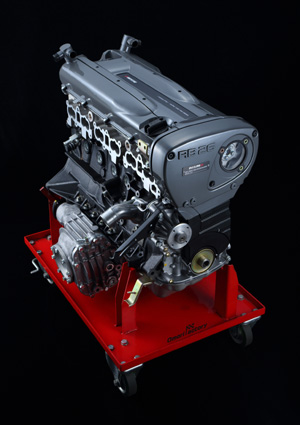

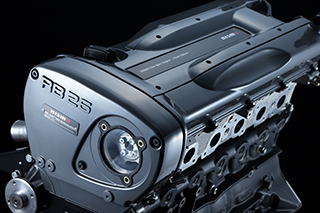

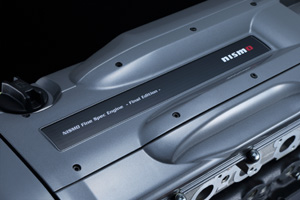

Nismo Fine Spec Final Edition RB26DETT Engine |
| Engine | Photos | Links Fitted to: Customer Cars |
Engine

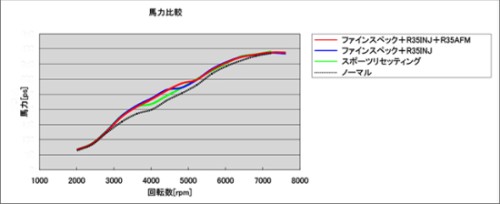

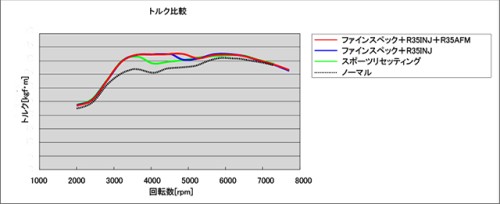

| Achieved better response at low speeds, increased torque at medium speeds, and good growth at high speeds. Fine Spec Engine Final Edition is combined with "R35 Injector", "R35 Air Flow Meter" and "Dedicated ECM". The fine spec engine is the ideal RB26DETT engine complete with the reliability of the N1 racing engine, the high accuracy of the Nur engine, and the all-round performance unique to NISMO. The Final Edition is the last production of the fine spec engine and uses special special specifications. Limited to 200 units. |
|
 |
|
| Engine Model | RB26DETT Fine Spec Final Edition Specification |
| Total Displacement | 2,568 cc |
| Maximum Output | Unlisted (factory designation 280 ps) |
| Maximum Torque | Unlisted (factory designation 40 kg · m) |
 |
Uses genuine injector for NISSAN GT-R (R35) with excellent fuel atomization performance. The engine revs up lighter and the response improves. In addition, gasoline dilution is low, and it is effective in improving fuel efficiency when used in combination with low-viscosity oil. |
 |
The genuine airflow meter for the NISSAN GT-R (R35) reduces hunting in the high rotation range to about 1/5 of that for the RB, allowing the fuel injection to follow the intake air amount linearly. It will be possible. Even when the throttle is suddenly released, the response is good and there is also the advantage that unnecessary fuel injection can be reduced. |
 |
Designated oil COMPETITION OIL type 2193E (5W40) is the designated oil. |
| Other parts: | Engine Block N1 Specification |
| Piston N1 Specification | |
| Piston ring N1 Specification | |
| Connecting rods N1 Specification | |
| Connecting rod bearing Nismo F112 | |
| Main bearing Nismo F112 | |
| Camshaft Standard Specification | |
| Water pump N1 Specification | |
| Oil pump N1 Specification | |
| Timing belt Nismo | |
| Head Gasket Nismo Metal | |
| Oilpan baffle plate Nismo | |
| Warranty period: The engine and peripheral parts are guaranteed for one year or 10,000 km after installation. | |
| Price: | 1,029,000 yen (2012) |
| 1,315,000 yen (2019) | |
 |
|
 |
|
Photos
 |
 |
 |
 |
 |
 |
 |
 |

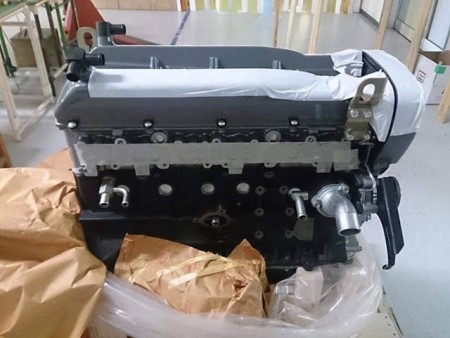

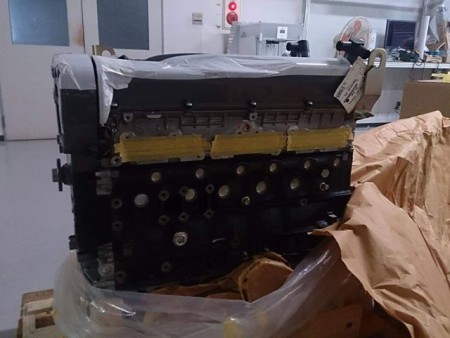

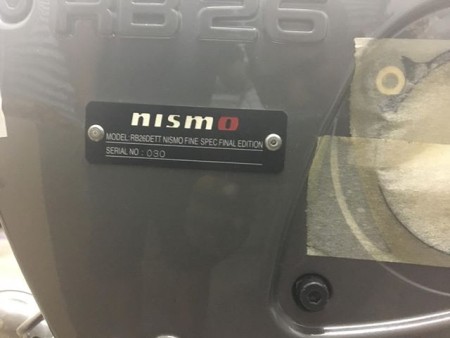

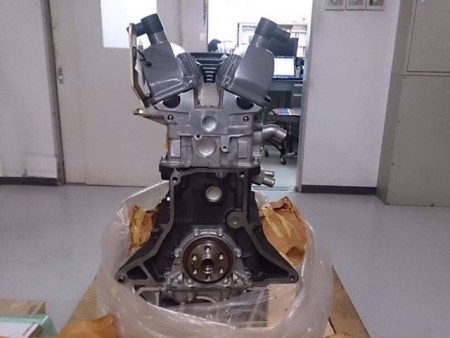

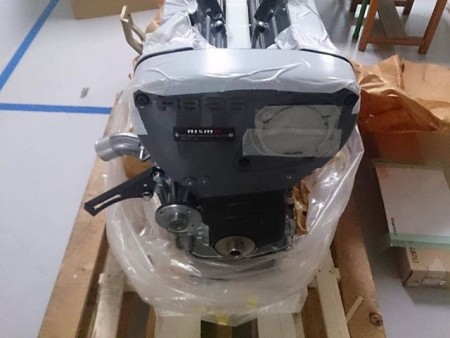

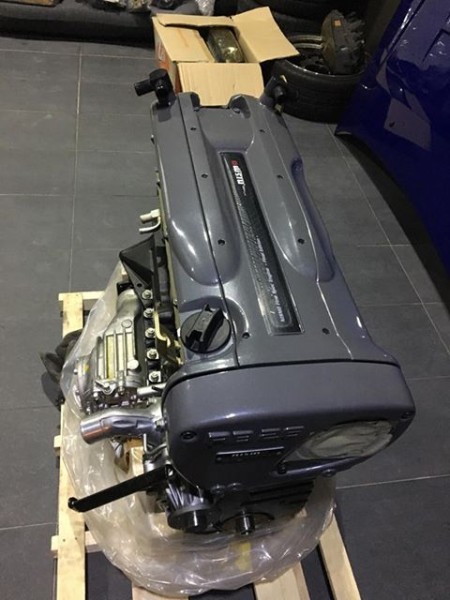

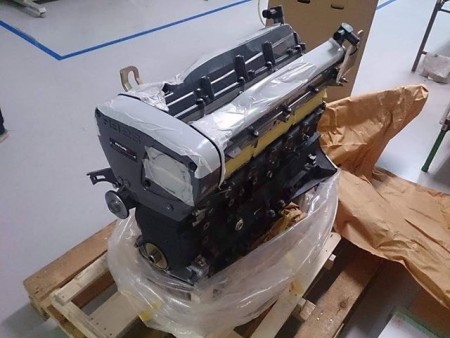

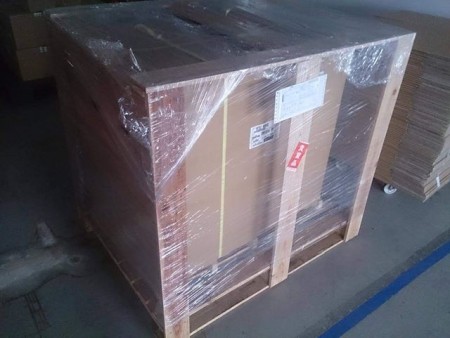

Unwrapping the FSFE Engine
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Photos provided by Azam from Malaysia. | |
