Nissan Skyline R32 GT-R Other Nismo Packages, Upgrades and Maintenance |
| Engine Diagnostic Menu | Vehicle Diagnostic Menu | Chassis Refresh | Interior Refresh | Aging Deterioration Kit |

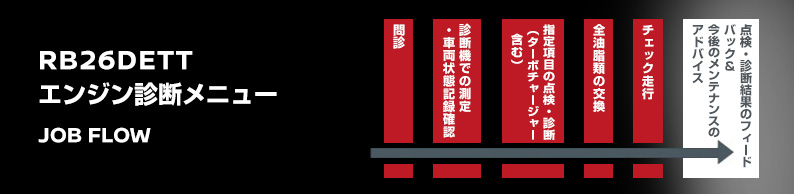

Engine Diagnostic Menu
 |
| It is important for owners of the Skyline GT-R to have a great engine that combines high durability with high performance. However, wear and tear of the parts that make up the engine and aging of the accessories are unavoidable issues. The Omori Factory, which has been building and maintaining many RB26DETTs for a long period of time, will check and confirm the conditions correctly and provide various maintenance advice. For vehicles equipped with standard and NISMO Sports Resetting to vehicles equipped with S1 and R1 engines tuned up at the Omori factory; those who are suffering from maintenance issues; and second owners who bought used cars. Recommended for 10 years or 100,000 km as a guideline use. |
| Work Contents: | |
| 1. Consult Diagnosis, Ignition Timing Check | |
| Engine diagnostics | Inspection |
| AAC valve function test | Inspection |
| O2 sensor function test | Inspection |
| Throttle sensor (fully open, idle off, fully closed) | Inspection |
| Fuel pressure | Inspection |
| Ignition timing (idle, 25 degrees, 30 degrees) | Inspection |
| 2. Engine | |
| Engine oil amount | Inspection |
| Fuel hose | Inspection |
| Each vacuum hose | Inspection |
| Cooling water | Inspection |
| Fuel leak around injectors | Inspection |
| Reservoir tank coolant level | Inspection |
| Air cleaner | Inspection |
| Air flow meter (FR / RR) | Inspection |
| Around the throttle cable | Inspection |
| Fan A / CP P / S belt | Inspection |
| 3. Engine Compression, Endoscope Check, Power Balance Measurement | |
| Spark plug | Inspection |
| Endoscope | Inspection |
| Compression | Measurement |
| Power balance | Measurement |
| Spark plug type | Verification |
| Spark plug number | Verification |
| 4. Turbocharger Inspection | |
| Oil leak (FR / RR) | Inspection |
| Water leak (FR / RR) | Inspection |
| Impeller broken (FR / RR) | Inspection |
| Rotor shaft sliding resistance (FR / RR) | Inspection |
| Rotor shaft play (FR / RR) | Inspection |
| Rotor shaft end play (FR / RR) | Measurement |
| Actuator rod operating pressure (FR / RR) | Measurement |
| 5. Muffler and Catalyzer Inspection | |
| Muffler parts damaged and exhaust leak | Inspection |
| Volume | Measurement |
| Exhaust gas color | Inspection |
| Exhaust gas concentration | Inspection |
| 6. Replacement of all Oils | |
| Engine oil, oil filter | Exchange |
| Transmission oil | Exchange |
| FR differential oil | Exchange |
| RR differential oil | Exchange |
| Transfer oil | Exchange |
| Brake fluid | Exchange |
| Clutch fluid | Exchange |
| Power steering fluid | Exchange |
| LLC | Exchange |
| 7. Check Driving | |
| Filling | Inspection |
| Check for abnormal noise | Inspection |
| * Replacement of spark plug and air cleaner is recommended because no additional labor is required. (Parts cost will be charged separately.) | |
| * If additional maintenance (defect search, etc.) occurs due to the diagnosis result, extra cost will be charged. | |
| Note: This is a direct Google translation. | |
| Price: |
| Contact Nismo Omori Factory |
| Links: |
| Nismo |
Vehicle Diagnostic Menu
 |
| This is the Omori Factory's original diagnostic menu that has been created with the experience and know-how of the factory. It is recommended for the first owner and the second owner who bought a used car and who want to know the correct condition of the car. We focus on future maintenance advice. |
| Work Contents: | |
| 1. Consult Diagnosis, Ignition Timing Check | |
| Engine diagnostics | Inspection |
| AAC valve function test | Inspection |
| O2 sensor function test | Inspection |
| Throttle sensor (fully open, idle off, fully closed) | Inspection |
| Fuel pressure | Inspection |
| Ignition timing (idle, 25 degrees, 30 degrees) | Inspection |
| 2. Engine | |
| Engine oil amount | Inspection |
| P / S oil amount | Inspection |
| Fuel hose | Inspection |
| Each vacuum hose | Inspection |
| Cooling water | Inspection |
| Fuel leak around injectors | Inspection |
| Reservoir tank coolant level | Inspection |
| Air cleaner | Inspection |
| Air flow meter (FR / RR) | Inspection |
| Around the throttle cable | Inspection |
| Fan A/CP P/S belt | Inspection |
| 3. Engine Compression, Endoscope check, Power Balance Measurement | |
| Spark plug | Inspection |
| Endoscope | Inspection |
| Compression | Measurement |
| Power balance | Measurement |
| Spark plug type | Verification |
| Spark plug number | Verification |
| 4. Chassis Side Inspection | |
| Hub play (FR / RR) | Inspection |
| Tires, wheels | Inspection |
| Engine oil leak (around the body, around the turbo) | Inspection |
| Cooling water leak | Inspection |
| FR drive shaft breakage / damage | Inspection |
| RR drive shaft breakage / damage | Inspection |
| T / M oil leak | Inspection |
| T / F oil leak | Inspection |
| ETS oil leak | Inspection |
| FR / RR propeller shaft | Inspection |
| Muffler parts damaged, exhaust leak | Inspection |
| FR / RR differential oil leak | Inspection |
| Shock absorber | Inspection |
| Steering rack insulator | Inspection |
| HICAS rack boots | Inspection |
| HICAS ball joint | Inspection |
| Tie rod end | Inspection |
| P / S hose, oil amount | Inspection |
| Tension rod | Inspection |
| FR upper link | Inspection |
| RR upper link (FR / RR) | Inspection |
| RR A arm | Inspection |
| RR suspension member-bush | Inspection |
| FR / RR stabilizer | Inspection |
| Diff mount insulator | Inspection |
| Engine mount | Inspection |
| T / M mount | Inspection |
| Muffler mount | Inspection |
| 5. Brake & Clutch Inspection | |
| Brake rotor | Inspection |
| Brake caliper | Inspection |
| Brake hose | Inspection |
| Side brake | Inspection |
| Operating cylinder | Inspection |
| Clutch hose | Inspection |
| Brake master cylinder | Inspection |
| Clutch master-cylinder | Inspection |
| Fluid amount | Inspection |
| 6. Other Alignment Adjustment | |
| Light rotation Inspection | Inspection |
| Check wheel nut tightening | Inspection |
| Check tire pressure * Including temper tires | Inspection |
| alignment | Measurement and adjustment |
| 7. Replacement of all Oils | |
| Engine oil, oil filter | Exchange |
| Transmission oil | Exchange |
| FR differential oil | Exchange |
| RR differential oil | Exchange |
| Transfer oil | Exchange |
| Brake fluid | Exchange |
| Clutch fluid | Exchange |
| Power steering fluid | Exchange |
| LLC | Exchange |
| 8. Check Driving | |
| Maneuverability | Inspection |
| T / M filling | Inspection |
| Differential filling | Inspection |
| Brake feeling | Inspection |
| Check for abnormal noise | Inspection |
| Volume | Measurement |
| * Replacement of spark plug and air cleaner is recommended because no additional labor is required. (Parts cost will be charged separately.) | |
| * If additional maintenance (defect search, etc.) occurs due to the diagnosis result, extra cost will be charged. | |
| Note: This is a direct Google translation. | |
| Price: |
| Contact Nismo Omori Factory |
| Links: |
| Nismo |

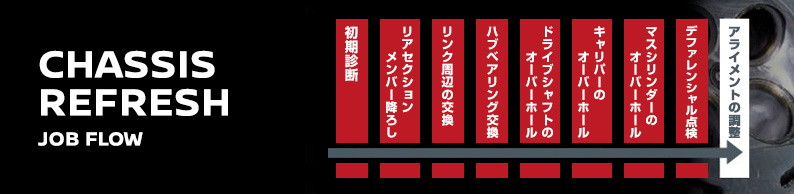

Chassis Refresh
 |
 |

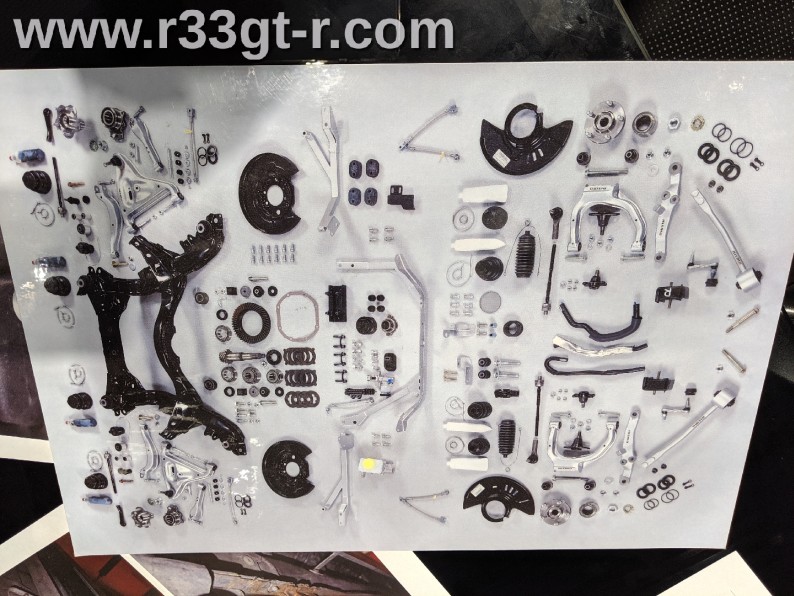

| Photo by Aki at r33gt-r.com |
| Undercarriages and drivetrains that are particularly susceptible to deterioration, such as bushes, mounts, and boots. If you feel vibrations, abnormal noises, or irregular movements while driving, you need to take early action. The NISMO Omori Factory has covered the weaknesses of each model based on our extensive experience, and has set up an effective refresh plan for each model. As a result, the original performance of the vehicle can be restored. In addition, NISMO reinforced parts can be exchanged from the standard parts. It is possible to improve the performance of the vehicle. |
| Work Contents: | ||
| 1. Mounting | ||
| Engine mount | Engine mount (FR / RR), T / M member push | Exchange |
| Muffler mounting | Exhaust rubber mounting | Exchange |
| 2. Powertrain | ||
| Clutch | Clutch disc, clutch cover, air release Clutch oil | Inspection and adjustment |
| Release BRG, Enhanced pivot, Master cylinder piston kit, Operating cylinder piston kit, Clutch hose, Short parts | Exchange | |
| Transmission | Body | Inspection and adjustment |
| Transmission oil, control lever boots, dust boots | Exchange | |
| Drive shaft | FR outer boots (RH / LH), FR inner boots (RH / LH), RR inner boots (RH / LH), RR outer boots (RH / LH), short parts | Exchange |
| Differential | RR differential (LSD), backlash, per tooth | Inspection and adjustment |
| FR differential oil, FR side oil seal (RH / LH), FR differential adjustment shim, side oil seal, carrier gasket, RR differential oil | Exchange | |
| Propeller shaft | Body | Inspection and adjustment |
| Short parts | Exchange | |
| ETS | Hydraulic unit, transfer, control unit | Inspection and adjustment |
| Air release Hydraulic oil, transfer oil, accumulator | Exchange | |
| 3. Axle | ||
| Hub | Front (RH / LH), Rear (RH / LH) | Inspection and adjustment |
| Hub Bolt (FR / RR), FR Hub Bearing Oil Seal, FR Hub, FR Hub Bearing, RR Hub Bearing Oil Seal, RR Hub, RR Hub Bearing | Exchange | |
| 4. Suspension | ||
| Link arm | Tension rod assembly (RH / LH), FR upper link assembly (RH / LH), RR upper link assembly (RH / LH), RR A arm assembly (RH / LH), RR suspension member assembly | Exchange |
| Bush mount | RR ASKUL bush, RR ASKUL S / AB bush, FR stabilizer bush, FR stabilizer connecting rod, RR stabilizer bush, differential mount upper bush, death mount lower bush, differential mount insulator, short parts | Exchange |
| S / AB | FR, RR | Exchange |
| Upper bush (FR / RR), Lower bush (FR / RR), FR sheet rubber, RR sheet rubber, FR dust cover, RR dust cover | Exchange | |
| HICAS | Control unit | Inspection and adjustment |
| Ball joint, rod assembly, rod end, boot kit | Exchange | |
| Alignment | Alignment | Inspection and adjustment |
| Tire | Balance adjustment | Inspection and adjustment |
| 5. Brake | ||
| Rotor | FR, RR | Inspection and adjustment |
| Pad | FR, RR | Inspection and adjustment |
| Caliper | FR seal kit, RR seal kit | Exchange |
| Brake hose | FR RH LH, RR RH LH | Exchange |
| Side brake | Side brake | Inspection and adjustment |
| Master Cylinder | Piston kit, reservoir tank seal | Exchange |
| ABS | Body, piping air release | Inspection and adjustment |
| Fluid | Fluid | Exchange |
| 6. Steering | ||
| Rack-and-pinion | Steering rush insulator, rod assembly, rod end, | Exchange |
| Boot kit | ||
| Power steering | Hose & tube, return hose, pump-to-reservoir hose, hose & tube, clamp | Exchange |
| Ventilation power steering oil | Inspection and adjustment | |
| 7. Other | ||
| Chemical & short parts | Set | Exchange |
| 8. Check driving | ||
| Check driving | Check driving | Inspection and adjustment |
| Note: This is a direct Google translation. | ||
| Price: |
| Contact Nismo Omori Factory |
| Links: |
| Nismo |
Interior Refresh
 |
| Interior Refresh is comprised of 4 components, floor sound absorption & insulation kit, carbon aluminium honeycomb kit, seat replacement kit and steering wheel leather replacement. |
| Floor Sound Absorption & Insulation Kit | |
| By combining three types of seats, the effects of "sound insulation / vibration suppression", "heat resistance" and "sound absorption / heat insulation" are enhanced, and the quietness of the vehicle body is improved. Price (front): 180,000 yen Price (rear): 70,000 yen |
  |
| Carbon Aluminium Honeycomb Kit | |
| Rear partition reinforcement using carbon sandwich aluminum honeycomb. By attaching a sound-absorbing and heat-insulating sheet in accordance with the installation on the panel, it also adds a sense of quality when driving. Price: 278,000 yen (2nd image is without kit) |
  |
| Seat Replacement Kit | |
| Seat cloth change to alcantara. Price: 476,000 yen |
  |
| Steering Leather Replacement | |
| Replace leather on steering wheel. Target: Nismo Steering Wheel, genuine steering wheel Price: 32,000 yen |
 |
| Links: |
| Nismo |
Aging Deterioration Kit
 |
| Age Replacement Kit is comprised of 3 components, ignition system kit and intake system kit and G sensor. |
| Ignition System Kit | |
| Preliminary consultation diagnosis Check the endoscope inside the engine Replacement of NISMO racing plug Ignition coil replacement Power transistor + wiring connector exchange Crank angle sensor + wiring connector exchange Coil sub harness replacement Price: 193,000 yen |
 |
| Intake System Kit | |
| Preliminary consultation diagnosis Replacement of NISMO air filter Air flow meter + wiring connector exchange Throttle sensor replacement Price: 89,000 yen |
 |
| G Sensor | |
| G sensor replacement Replacement of NISMO titanium GT shift knob Price: 198,000 yen |
 |
| Links: |
| Nismo |
